Biomass sawdust burner

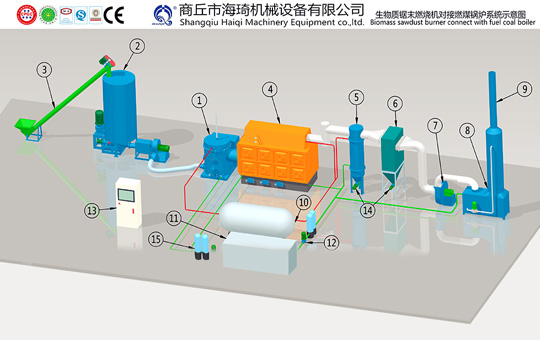

Biomass sawdust burner connect with coal fired boiler
- 14T Biomass sawdust burner
- 2Fuel bin
- 3Screw conveyor
- 4Fuel coal boiler
- 5Waste heat recovery
- 6Multiple ceramic dust removal
- 7ID fan
- 8Smoke removal scrubber tower
- 9Chimney
- 10Hot water tank
- 11Cold water box
- 12Water pump
- 13Control pannel
- 14Air lock
- 15Water softener plant

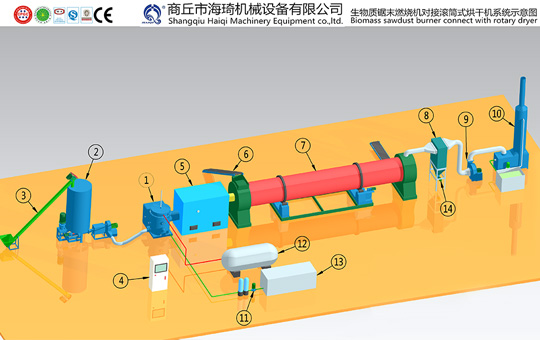

Biomass sawdust burner connect with rotary dryer
- 14T Biomass sawdust burner
- 2Fuel bin
- 3Screw conveyor
- 4Control panel
- 5Heat exchanger
- 6Belt transfer conveyor
- 7Rotary dryer
- 8Multiple ceramic dust removal
- 9ID fan
- 10Smoke removal scrubber tower
- 11Water pump
- 12Hot water tank
- 13Cold water box
- 14Air lock

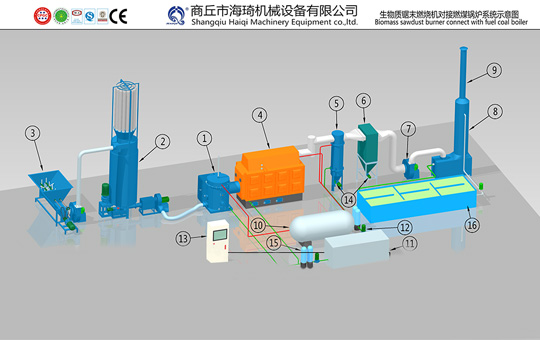

Biomass wood sawdust burner connect with coal-fired boiler
- 14T Biomass sawdust burner
- 2Fuel bin
- 3Blend fuel feeder
- 4Fuel coal boiler
- 5Waste heat recovery
- 6Multiple ceramic dust removal
- 7ID fan
- 8Smoke removal scrubber tower
- 9Chimney
- 10Hot water tank
- 11Cold water box
- 12Water pump
- 13Control panel
- 14Air lock
- 15Water softener plant
- 16Purification cycle water pool

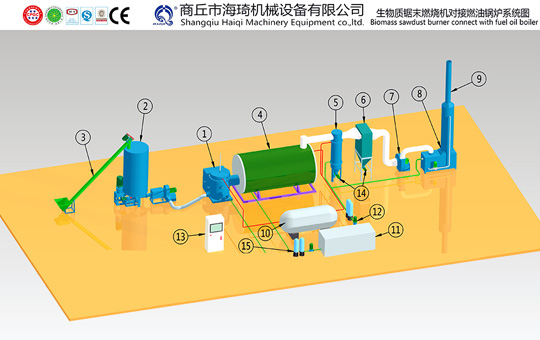

Biomass sawdust burner connect with oil-fired boiler
- 14T Biomass sawdust burner
- 2Fuel bin
- 3Screw conveyor
- 4Boiler equipment
- 5Waste heat recovery
- 6Multiple ceramic dust removal
- 7ID fan
- 8Smoke removal scrubber tower
- 9Chimney
- 10Hot water tank
- 11Cold water box
- 12Water pump
- 13Control pannel
- 14Air lock
- 15Water softener plant

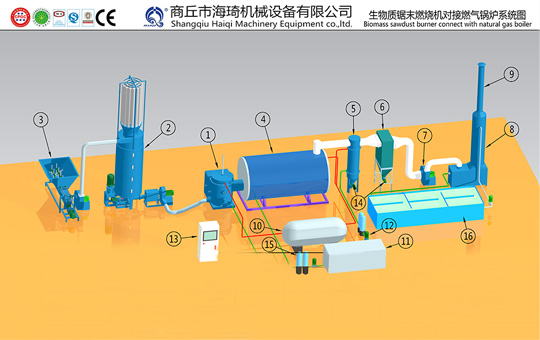

Biomass wood sawdust connet with gas fired boiler
- 14T Biomass sawdust burner
- 2Fuel bin
- 3Blend fuel feeder
- 4Natural gas boiler
- 5Waste heat recovery
- 6Multiple ceramic dust removal
- 7ID fan
- 8Smoke removal scrubber tower
- 9Chimney
- 10Hot water tank
- 11Cold water box
- 12Water pump
- 13Control panel
- 14Air lock
- 15Water softener plant
- 16Purification cycle water pool

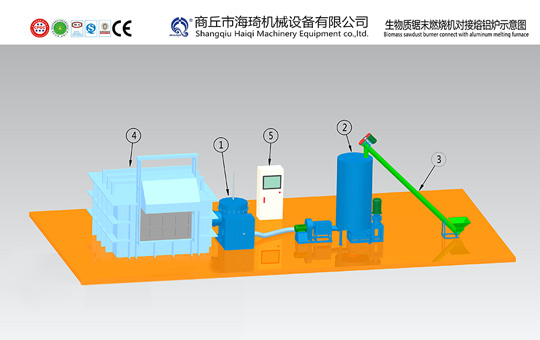

Biomass wood sawdust connect with aluminum melting furnace
- 1Biomass sawdust burner
- 2Fuel bin
- 3Screw conveyor
- 4Aluminum melting furnace
- 5Control panel
