Biomass & MSW gasification power plant
Gasification power plant system
- 1Gasfifier
- 2Bucket conveyor
- 3Cyclone dust removal system
- 4Water bath dust removal
- 5Oil water separator
- 6Filter
- 7High pressure fan
- 8Water seal
- 9Control pannel
- 10Drying system
- 11No.2 drying system
- 12Cooling tower
- 13Gas tank
- 14Genset

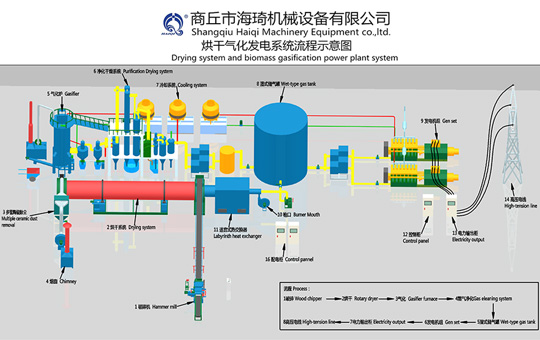

crush&drying connect with gasification power plant system
- 1Hammer mill
- 2Drying system
- 3Multiple ceramic dust removal
- 4Chimney
- 5Gasifier
- 6Purification drying system
- 7Cooling system
- 8Wet-type gas tank
- 9Gen set
- 10Burner mouth
- 11Labyrinth heat exchanger
- 12Control pannel
- 13Electricity output
- 14High-tension line

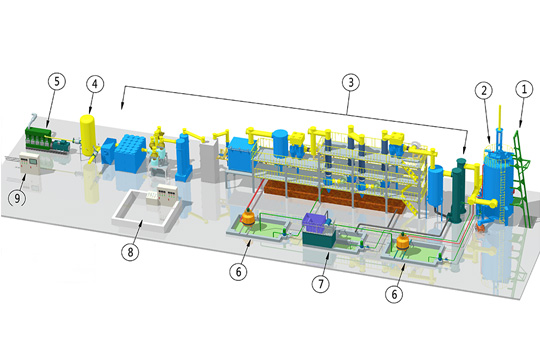

gasification power plant
- 1Conveyor system
- 2Gasification system
- 3Gas purification system
- 4Air storage tank
- 5Gen set
- 6Cooling system
- 7Water waste treatment system
- 8Control room
- 9Electricity output
