Biomass&MSW gasifier
Biomass &MSW gasifier connect with rotary dryer
- 1Conveyor system
- 2Gasification system
- 3Gas purification system
- 4Gas waste treatment system
- 5Burner mouth
- 6Cooling system
- 7Water waste treatment system
- 8Control pannel
- 9Labyrinth heat exchanger
- 10Hammer mill
- 11Rotary dryer
- 12Multi-tube ceramic dust removal
- 13ID fan
- 14Chimney
- 15Belt transporter

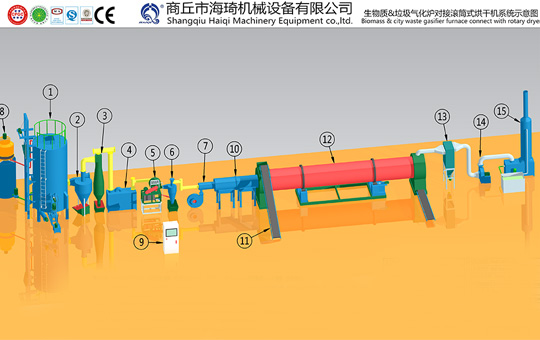

Biomass&MSW gasifier connect with rotary dryer
- 1Gasfifier
- 2Cyclone dust removal system
- 3Whirlwind dust removal system
- 4Water seal
- 5Water cooling fan
- 6Cyclone dust removal system
- 7Burning mouth
- 8Cooling tower
- 9Control pannel
- 10Heat exchanger
- 11Belt transporter
- 12Rotary dryer
- 13Multi-tube ceramic dust removal
- 14ID fan
- 15Smoke removal scrubber tower

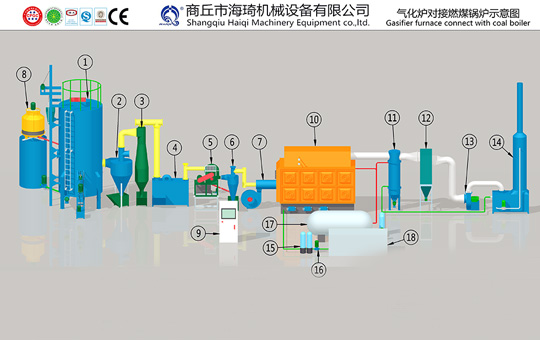

Biomass&MSW gasifier connect with coal-fired boiler
- 1Gasfifier
- 2Cyclone dust removal system
- 3Whirlwind dust removal system
- 4Water seal
- 5Water-cooled fan
- 6Cyclone dust removal system
- 7Burner mouth
- 8Cooling tower
- 9Control pannel
- 10Fuel coal boiler
- 11Waste heat recovery
- 12Multiple ceramic dust removal
- 13ID fan
- 14Water seal
- 15Chimney
- 16Water pump

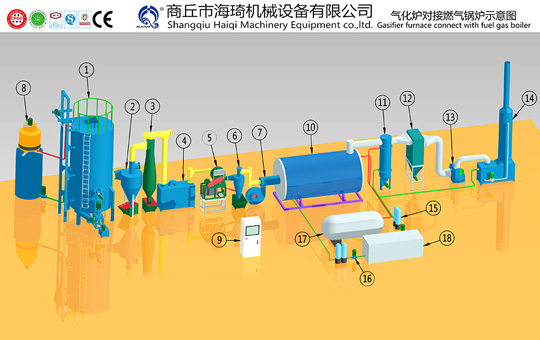

Biomass&MSW gasifier connect with gas-fired boiler
- 1Gasifier
- 2Cyclone dust removal system
- 3Whirlwind dust removal system
- 4Water seal
- 5Water-cooled fan
- 6Cyclone dust removal system
- 7Burner mouth
- 8Cooling tower
- 9Control pannel
- 10Natural gas boiler
- 11Waste gas boiler
- 12Multiple ceramic dust removal
- 13ID fan
- 14Smoke removal scrubber tower
- 15Water softener plant
- 16Water pump
- 17Hot water tank
- 18Cold water box
Biomass&MSW gasifier connect with oil-fired boiler
- 1Gasifier
- 2Cyclone dust removal system
- 3Whirlwind dust removal system
- 4Water seal
- 5Water-cooled fan
- 6Cyclone dust removal system
- 7Burner mouth
- 8Cooling tower
- 9Control pannel
- 10Boiler equipment
- 11Waste heat recovery
- 12Multiple ceramic dust removal
- 13ID fan
- 14Smoke removal scrubber tower
