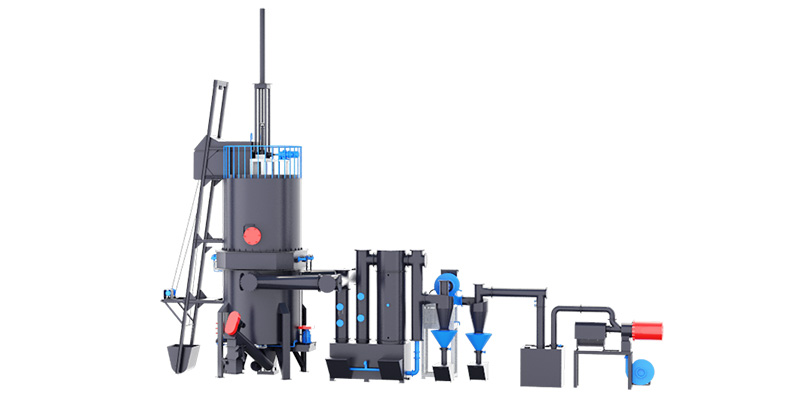

Biomass gasifier

  • Biomass gasifier system
  • Biomass gasifier system
  • Biomass gasifier system
  • Biomass gasifier system
  • Biomass gasifier system
  • Biomass gasifier system
  • Biomass gasifier system
  • Biomass gasifier system

Overview

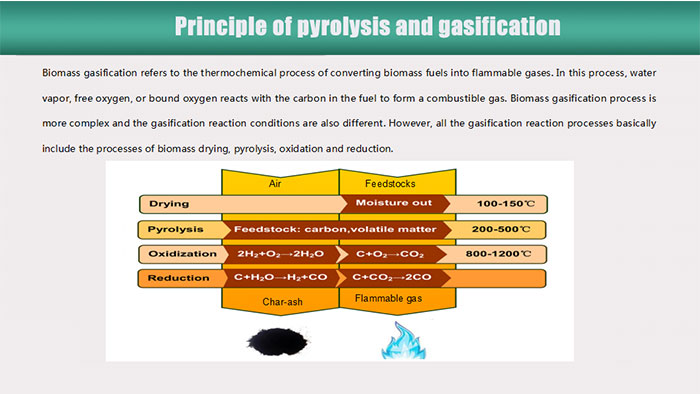

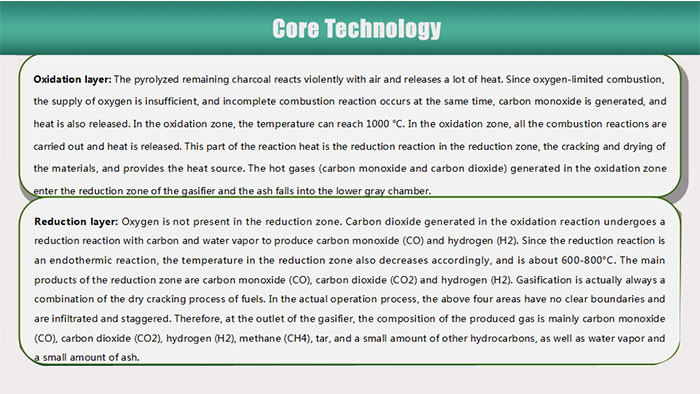

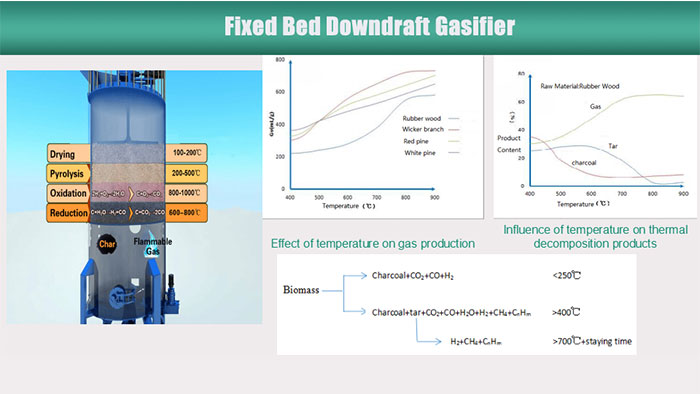

Biomass gasification is the thermochemical process of converting biomass fuels into combustible syngas.Combustible syngas can be used for domestic gas and heating supply,or boiler, kiln, dryer etc. heating supply.Wide range of raw materials: straw, wood chips, rice husks, palm shells, sugar cane bagasse, cotton rods, peanut shells, residue and other agricultural and forestry waste.

Raw Material Required: Moisture≤20%  Size : 3-10cm

Product feature

  • 1

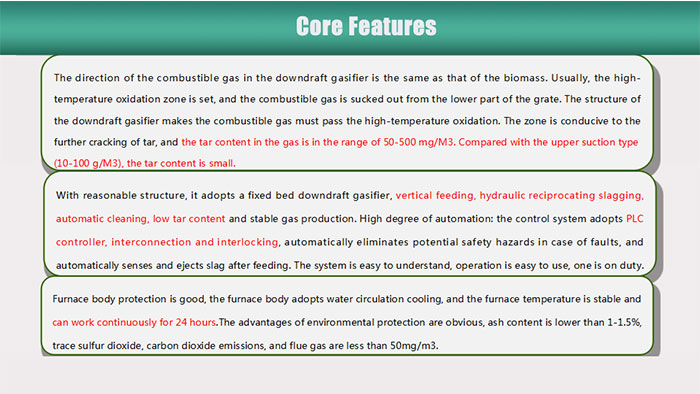

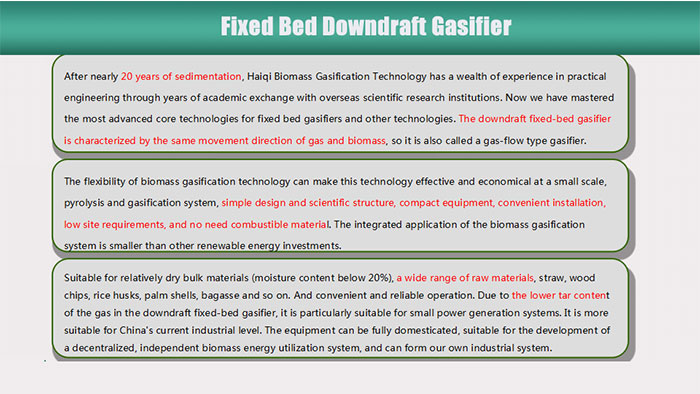

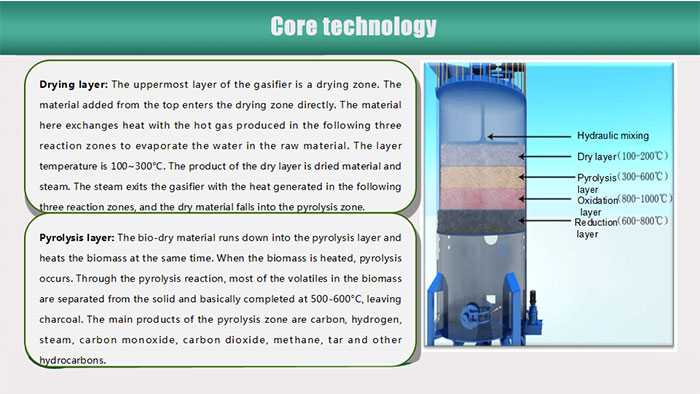

    Reasonable structure,fixed bed downdraft type, combustible gas goes through high temperature oxidation zone, low tar content, stable gas production.

  • 2

    Wide source of raw materials, agricultural waste, wood waste can be applied.

  • 3

    It does not need external combustion AIDS and relies on its own heat to continuously and steadily pyrolyze and gasify.

  • 4

    The furnace body is well protected, the furnace body adopts water circulation cooling, and the furnace temperature is stable and can run for 24 hours continuously.

  • 5

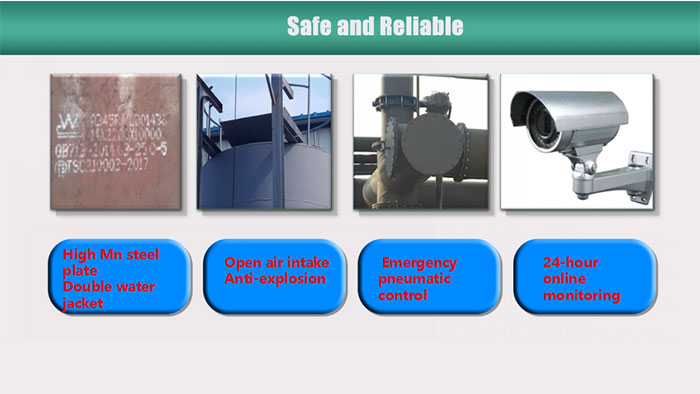

    High safety, open natural air intake and explosion proof, emergency pneumatic control system, 24 hours online monitoring.

  • 6

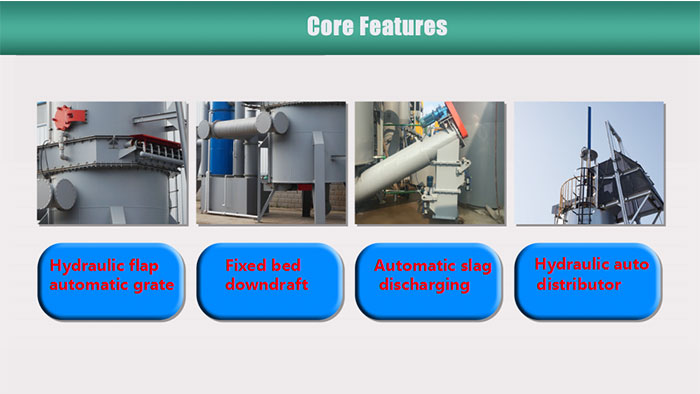

    High degree of automation: hydraulic automatic flap grate, automatic feeding and distributing system, screw automatic slag discharge system.

  • 7

    Obvious advantag es in environmental protection, ash content less than 1-1.5%, Trace amounts of sulfur dioxide, carbon dioxide emissions, flue gas less than 50mg/m3.

  • 8

    Gasifier gasification efficiency is high, up to more than 80%.

  • 9

    Biomass syngas is widely used.

  • 10

    Low equipment failure rate, can reduce the secondary investment.

  • 11

    Scientific design, compact structure, convenient installation and low site requirements.

  • 12

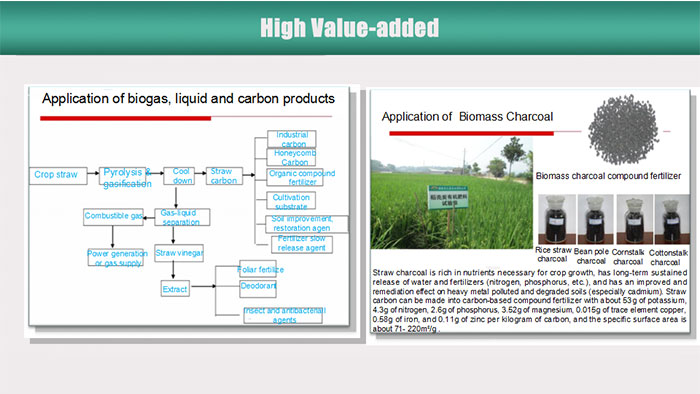

    The gasification process produces by-products such as charcoal, tar and wood vinegar, which greatly increases revenue.

  • 13

    The integrated application of biomass gasification systems are fewer investments and faster returns than other renewable energy investments.

Application scope

  • 1

    Fuel gas/oil/coal boiler industry

    (steam boiler, thermal oil furnace, hot water boiler)

  • 2

    Smelting Industry

    (aluminum melting furnace, reverberatory furnace)

  • 3

    Drying Industry

    (food drying, sawdust/wood chips/biomass drying)

  • 4

    Spray Coating Industry

    (metal spraying, electroplating heating)

  • 5

    Greenhouse, Building Industry

    (asphalt heating)

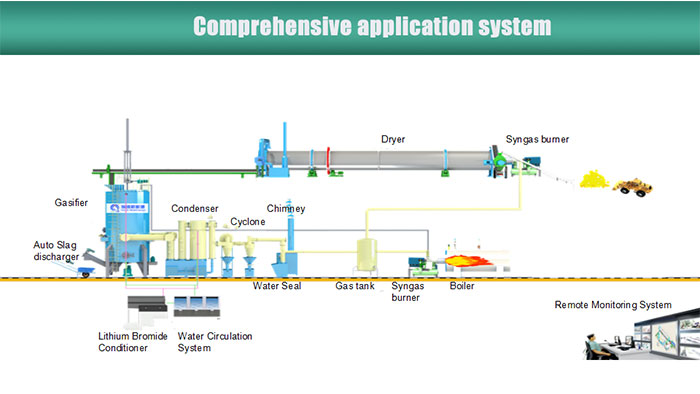

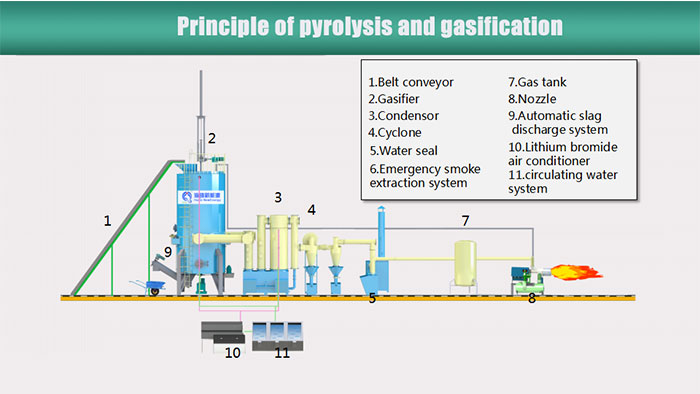

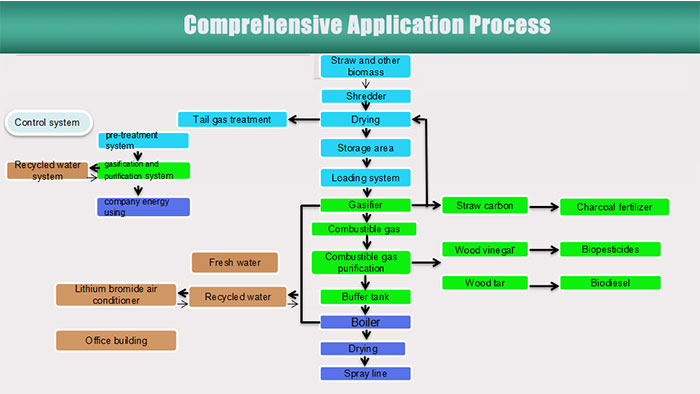

Biomass gasifier integrated application system

Biomass gasifier connect with fuel coal boiler

Biomass gasifier connect with fuel drying system

Our machine is suitable for all kinds of industry energy required equipment with simple structure, wide raw material application and continous operation.

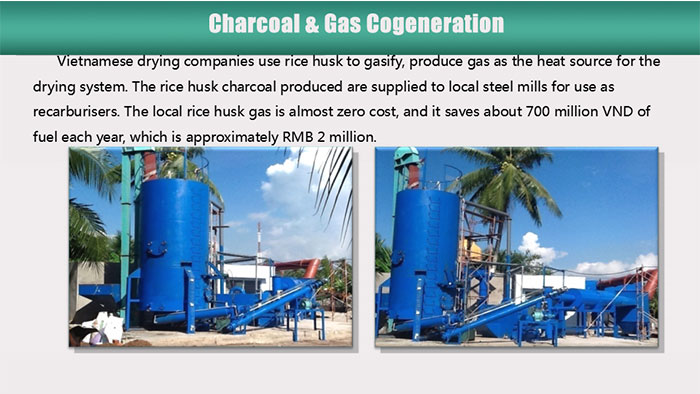

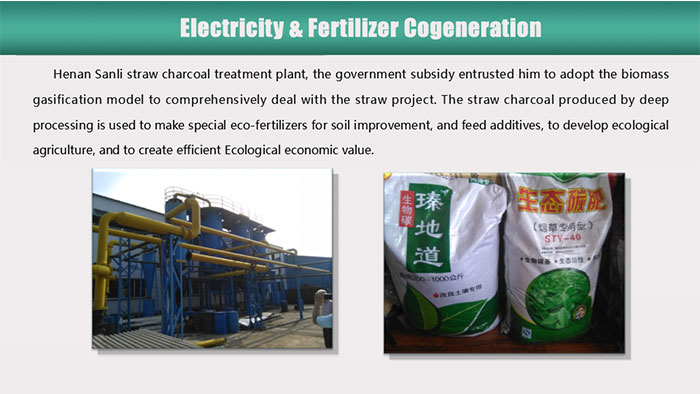

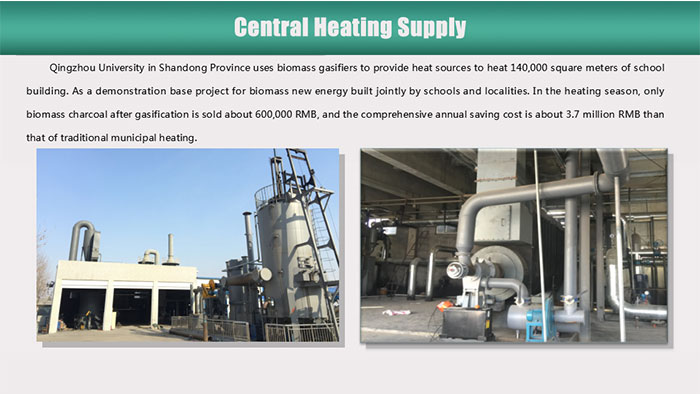

Case

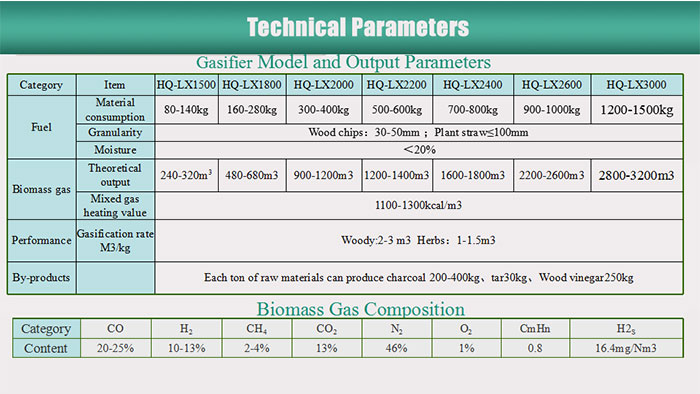

Technical Parameter

Item Model HQ-LX1500 HQ-LX1800 HQ-LX2000 HQ-LX2200 HQ-LX2400 HQ-LX2600 HQ-LX3000 HQ-LX3200 HQ-LX3500 HQ-LX-4000 HQ-LX-4500 HQ-LX-5000
  Calorific value(Kcal) 400000 800000 1200000 1800000 2400000 3000000 3600000 3900000 4500000 5500000 6500000 7000000
Sectional area (㎡) 1.77 2.54 3.14 3.8 4.52 5.31 7.06
Raw material Raw material consumption 90-160kg 200-320kg 400-600kg 600-800kg 800-1000kg 1000-1300kg 1300-1500kg 1500-2000kg 2000-2500kg 2500-2800kg 3000-3300kg 4000-4500kg
Raw material size Wood chip:30-50mm ;Straw≤100mm;waste≤100mm
Raw material moisture 15%-20%
Syngas Gas output 240-320m3 480-680m3 900-1200m3 1200-1400m3 1600-1800m3 2200-2600m3 2600-3000m3 3300-3500m3 3500-4200m3 4500-5000m3 5000-5500m3 5500-6000m3

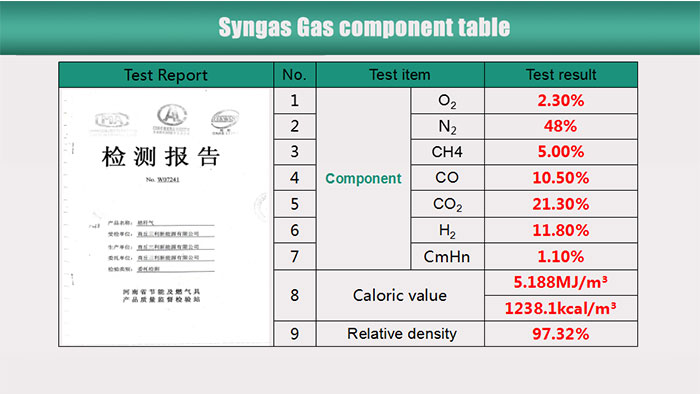

Gas composition CO:20-25% H2:8-15 CH42-4% CO2:2-4% N2:40-45% O2:≤1.0%
Gas Calorific Value 1100-1300kcal/m3
Performance Rate of gasification
M3/kg
wood:2-3 m3 herb:1-1.5m3 plastic:3-4m3
By-products   charcoal 300kg (30%)、wood tar 30kg (3%)、wood vinegar 250kg (25%)
Pressure Kpa -15*10 -30*10
Motor power kw 14kw 19kw 21kw 23.5kw 25kw 26.5kw 28.5kw 33kw 35.5kw 46kw 47kw 60.5kw

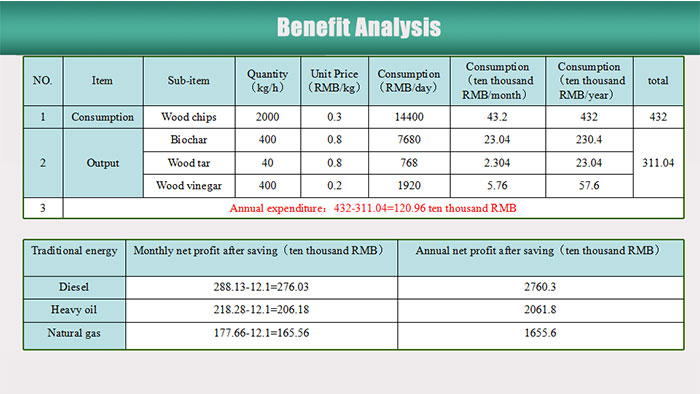

Profit Analysis

No.

Item

Sub-item

Quantity (kg/h)

Unit Price  ($/kg)

Consumption($/day)

Consumption ($/month)

Consumption($/year)

Total($)

1

Consumption

Wood  chips

2000

0.044

2112

63360

633600

633600

2

Output

Biochar

400

0.118

1132.8

33984

339840

457344

Wood tar

40

0.118

113.28

3398.4

33984

Wood vinegar

400

0.029

278.4

8352

83520

3

Annual expenditure:$633600-$457344=$176256


Traditional fuel

Profits saved/month

Profits saved/year

Diesel

423720.59-17625.6=406094.99

4060949.9

Heavy oil

321000-17625.6=303374.4

3033744

Natural gas

261264.71-17625.6=243639.11

2436391.1

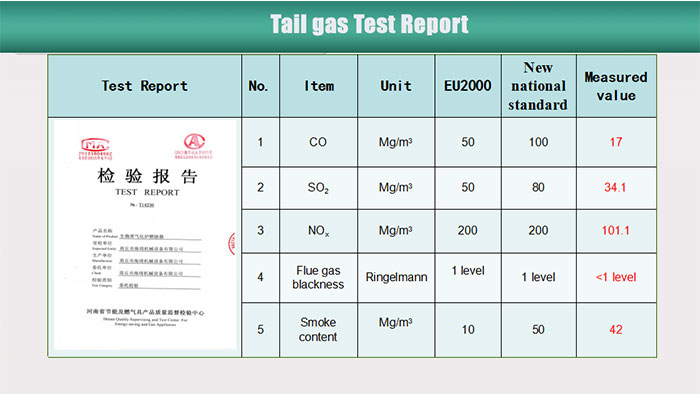

Emission Report

Test Report

No.

Item

Unit

EU2000

New national standard

Measured value



1

CO

Mg/m3

50

100

17

2

SO2

Mg/m3

50

80

34.1

3

NOx

Mg/m3

200

200

101.1

4

Flue gas blackness

Ringelmann

1 level

1 level

<1 level

5

Smoke content

Mg/m3

10

50

42
