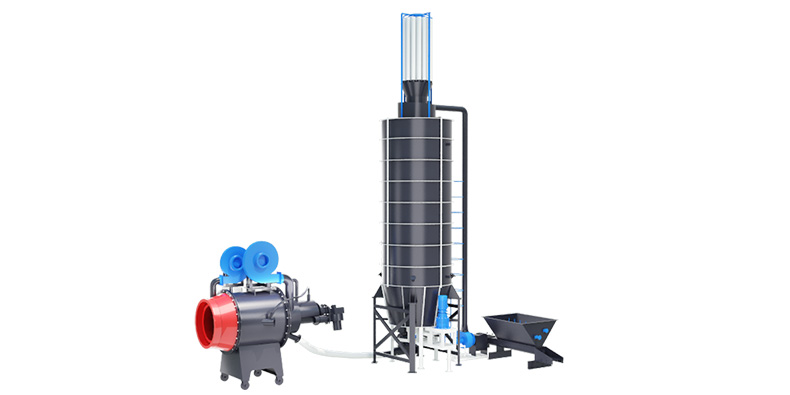

Biomass wood powder burner

  • Biomass wood powder burner
  • Biomass wood powder burner
  • Biomass wood powder burner
  • Biomass wood powder burner
  • Biomass wood powder burner
  • Biomass wood powder burner
  • Biomass wood powder burner
  • Biomass wood powder burner

Overview

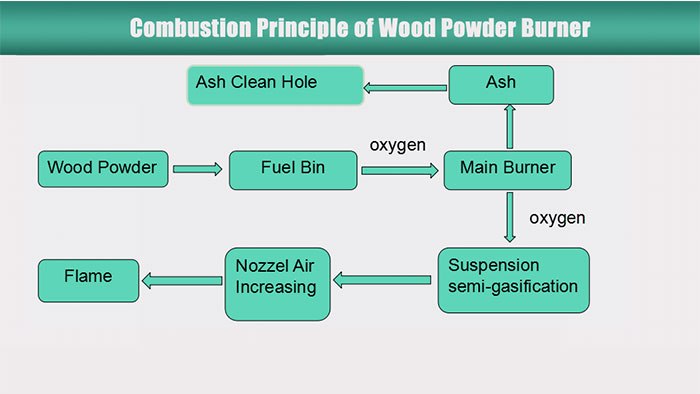

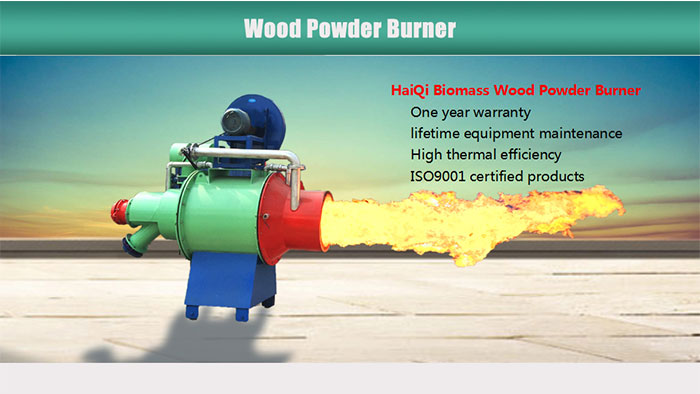

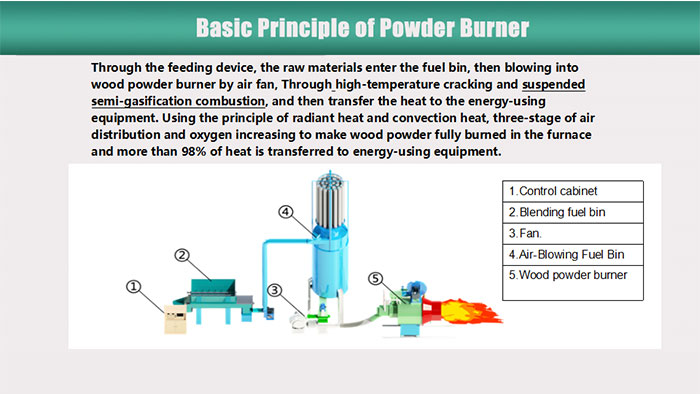

Biomass wood powder burner provides heat energy to other equipments by using biomass fuel.Feeding feedstock into the furnace by even feeding,high temperature pyrolysis suspension semi-gasification combustion,then transfer the heat to the energy-using equipment.

Raw material requirements: Moisture≤15%  Size≤60-80mesh

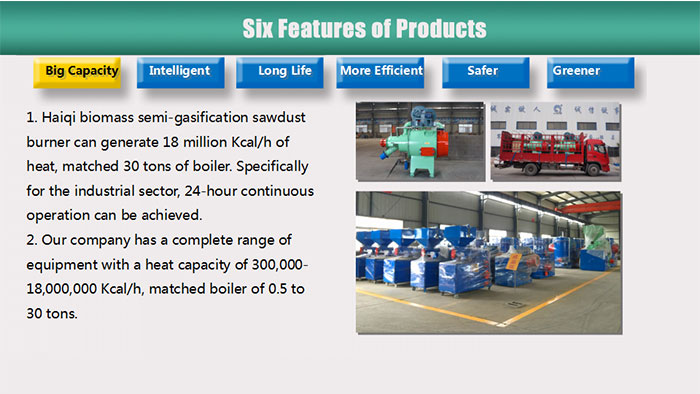

Product feature

  • 1

    Heat value 0.3-18 million kcal/h,matched boiler is 0.5 ton - 30 tons.24 hours continuous operation.

  • 2

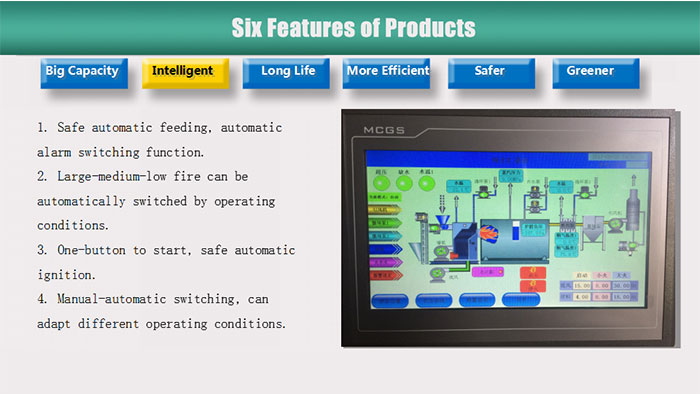

    Safe automatic feeding,automatic alarm switching function.Large-medium-low fire can be swithed automatically by operating conditions.One key to start, safe automatic ignition.

  • 3

    Full body cast first grade high alumina refractories,and is cooled by water.Anti-corrosion,high temperature resistance.

  • 4

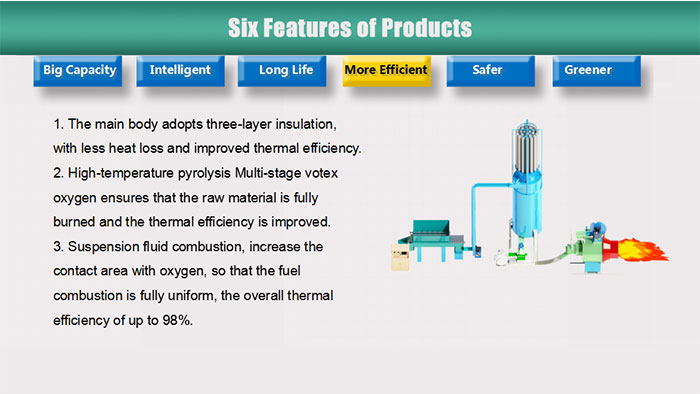

    The main body uses three layers of insulation,less heat loss, increase heat utilization.High-temperature pyrolysis multistage vortex oxygenation and suspension fluidized combustion,increased contact area with oxygen,so that the fuel fully burned,and overall thermal efficiency up to 98%.

  • 5

    The furnace front and furnace back system can realize interconnection interlocking,explosion-proof combustion and anti-tempering.Micro-negative pressure system operation,simple operation on duty.

  • 6

    Biomass fuel emissions are almost sero pollution,meet environmental standards.

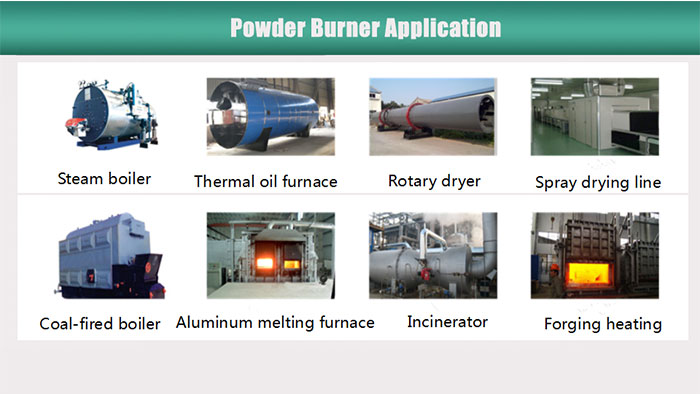

Application scope

  • 1

    Fuel gas/oil/coal boiler industry

    (steam boiler, thermal oil furnace, hot water boiler)

  • 2

    Smelting Industry

    (aluminum melting furnace, reverberatory furnace)

  • 3

    Drying Industry

    (food drying, sawdust/wood chips/biomass drying)

  • 4

    Spray Coating Industry

    (metal spraying, electroplating heating)

  • 5

    Greenhouse, Building Industry

    (asphalt heating)

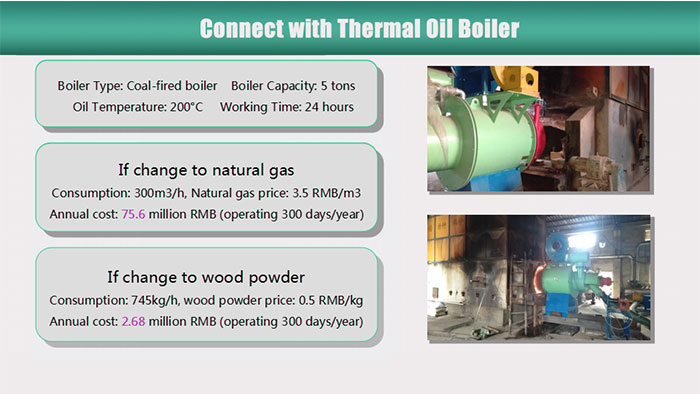

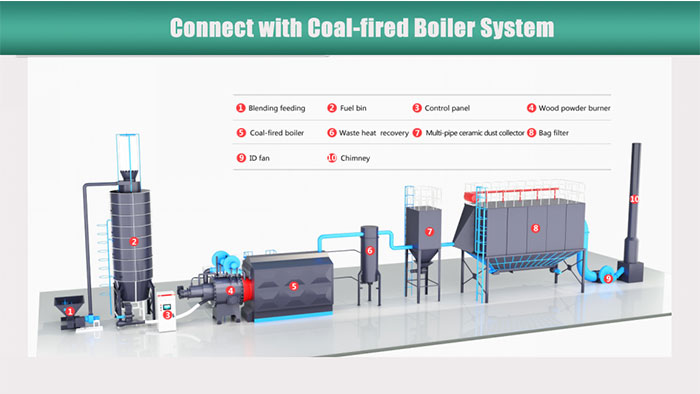

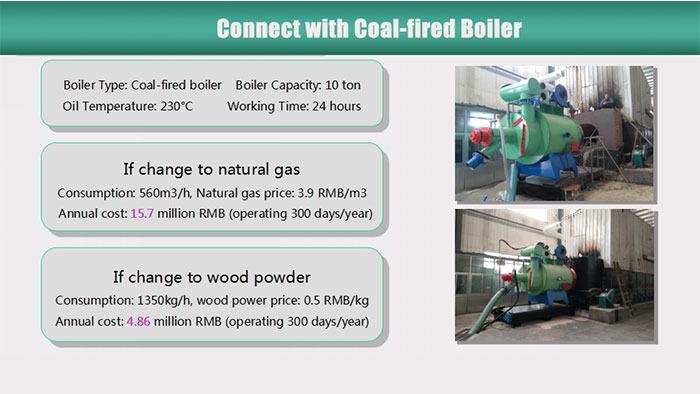

Biomass wood powder burner connect with fuel coal boiler

Biomass wood powder burner connect with oil/gas boiler

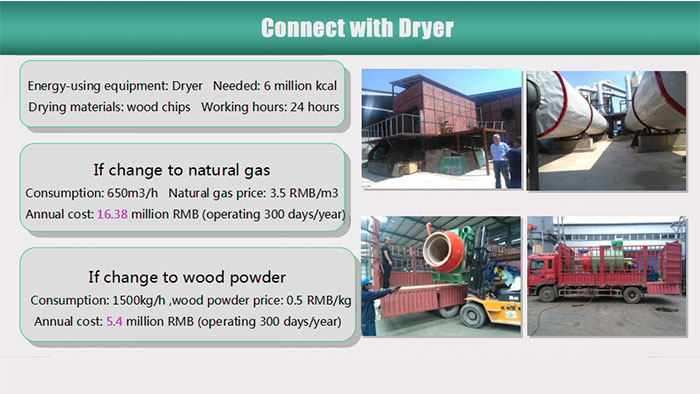

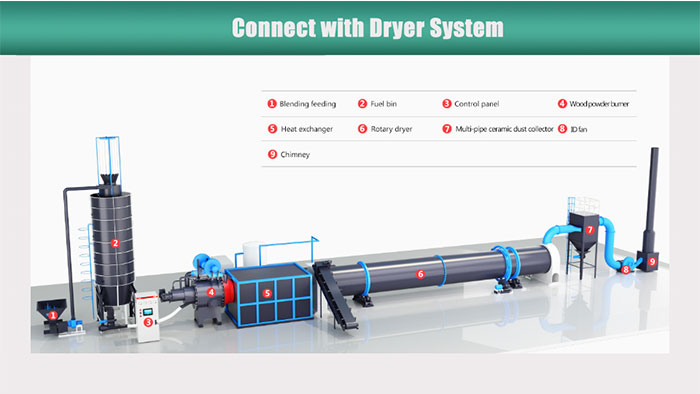

Biomass wood powder burner connect with drying system

Simple equipment structure, widely raw material application, operation continuous, be suitable for any kind of industry energy required equipment.

Case

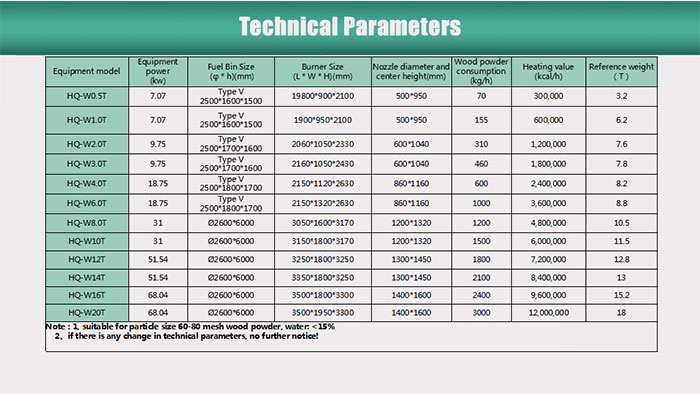

Technical Parameter

Equipment Model

Feeding conveyor(kw)

screw feeder(kw)

Fuel bin blender(kw)

Reducer oil pump(kw)

Fuel feeding fan(kw)

Bottom suspension fan(kw)

Mouth air fan(kw)

Circulation water pump(kw)

Screw feeder size(diameter)mm

Fuel bin size(dia.&height)mm

Equipment size
(L*W*H)mm

Mouth dia.&heightmm

Biomass consumption    kg/h

Heat Value kcal

Matched Boiler
(T)

Equipment weight
(T)

HQ-W0.5T



1.5





3

2.2

0.25

0.37



V-type
2500*1600*1500

1900*950*2100

500*950

70

300,000

0.5

3.2

HQ-W1.0T



1.5





3

2.2

0.25

0.37



V-type
2500*1600*1500

1900*950*2100

500*950

155

600,000

1

6.2

HQ-W2.0T



2.2





4

3

0.55

0.55



V-type
2500*1700*1600

2060*1050*2330

600*1040

310

1,200,000

2

7.6

HQ-W3.0T



2.2





4

3

0.55

0.55



V-type
2500*1700*1600

2060*1050*2330

600*1040

460

1,800,000

3

7.8

HQ-W4.0T



3





7.5

7.5

2.2

0.75



V-type
2500*1800*1700

2150*1120*2630

860*1160

600

2,400,000

4

8.2

HQ-W5.0T



3





7.5

7.5

2.2

0.75



V-type
2500*1800*1700

2150*1120*2630

860*1160

750

3,000,000

5



HQ-W6.0T



3





7.5

7.5

2.2

0.75



V-type
2500*1800*1700

2150*1120*2630

860*1160

1000

3,600,000

6

8.8

HQ-W7.0T

7.5

5.5





11

5.5

3

1.5



Ø2600*6000

3050*1600*3170

1200*1320

1100

4,200,000

7

9.5

HQ-W8.0T

7.5

5.5





11

5.5

3

1.5



Ø2600*6000

3050*1600*3170

1200*1320

1200

4,800,000

8

10.5

HQ-W9.0T

7.5

5.5





11

5.5

3

1.5



Ø2600*6000

3050*1600*3170

1200*1320

1350

5,400,000

9



HQ-W10T

7.5

5.5





11

5.5

3

1.5



Ø2600*6000

3050*1600*3170

1200*1320

1500

6,000,000

10

11.5

HQ-W12T

11

5.5

11

0.04

15

7.5

3

1.5



Ø2600*6000

3250*1700*3250

1300*1450

1800

7,200,000

12



HQ-W14T

11

5.5

11

0.04

15

7.5

3

1.5



Ø2600*6000

3250*1700*3250

1300*1450

2100

8,400,000

14



HQ-W15T

11

5.5

11

0.04

15

7.5

3

1.5



Ø2600*6000

3250*1700*3250

1300*1450

2250

9,000,000

15



HQ-W16T

15

5.5

11

0.04

18.5

15

4

3



Ø2600*6000

3500*1800*3300

1400*1600

2400

9,600,000

16



HQ-W18T

15

5.5

11

0.04

18.5

15

4

3



Ø2600*6000

3500*1800*3300

1400*1600

2700

10,800,000

18



HQ-W20T

15

5.5

11

0.04

18.5

15

4

3



Ø2600*6000

3500*1800*3300

1400*1600

3000

12,000,000

20



Note:Suitable for biomass wood powder size 60-80 mesh,Moisture:<15%

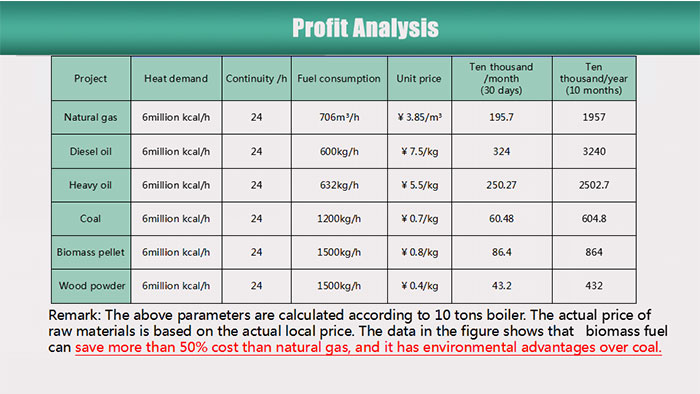

Profit Analysis

Project

Heat demand

Operation/hour

Fuel consumption

Unit price

USD/month

USD/year

(30days)

(10 months)

Natural gas

6M kcal/h

24

706m³/h

0.566 USD/m³

287,709.12

2,877,091.20

Diesel

6M kcal/h

24

600kg/h

1.103 USD/kg

476,496.00

4,764,960.00

Heavy oil

6M kcal/h

24

632kg/h

0.809 USD/kg

368,127.36

3,681,273.60

Coal

6M kcal/h

24

1200kg/h

0.103 USD/kg

88,992.00

889,920.00

Biomass pellet

6M kcal/h

24

1500kg/h

0.118 USD/kg

127,440.00

1,274,400.00

Biomass wood powder

6M kcal/h

24

1500kg/h

0.059 USD/kg

63,720.00

637,200.00

Remarks: The above parameters are calculated according to 10 tons boilers. The actual price of raw materials is based on the actual local price.The data in the figure shows that biomass fuel can save more than 70% than natural gas, and it has environmental advantages over coal.

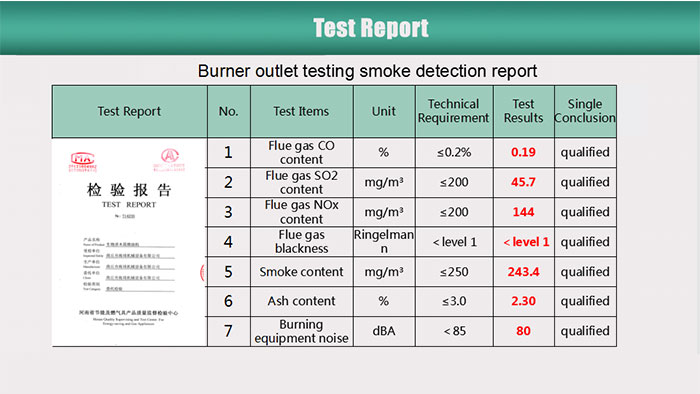

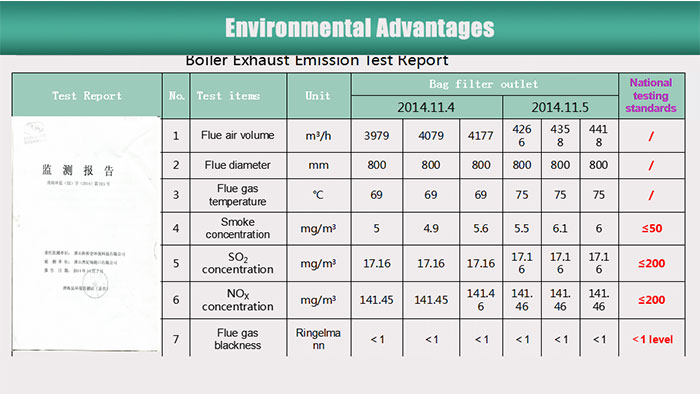

Emission Report

Test Report

No.

Test items

Unit

Technical requirements

Test results

Single conclusion

1

Flue gas CO content

%

≤0.2%

0.19

Qualification

2

Flue gas SO2 content

mg/m³

≤200

45.70

Qualification

3

Flue gas NOx content

mg/m³

≤200

144.00

Qualification

4

Flue gas blackness

Ringelmann

﹤1 level

﹤1 level

Qualification

5

Smoke content

mg/m³

≤250

243.4

Qualification

6

Ash content

%

≤3.0

2.30

Qualification

7

Burning equipment noise

dBA

<85

80.00

Qualification
